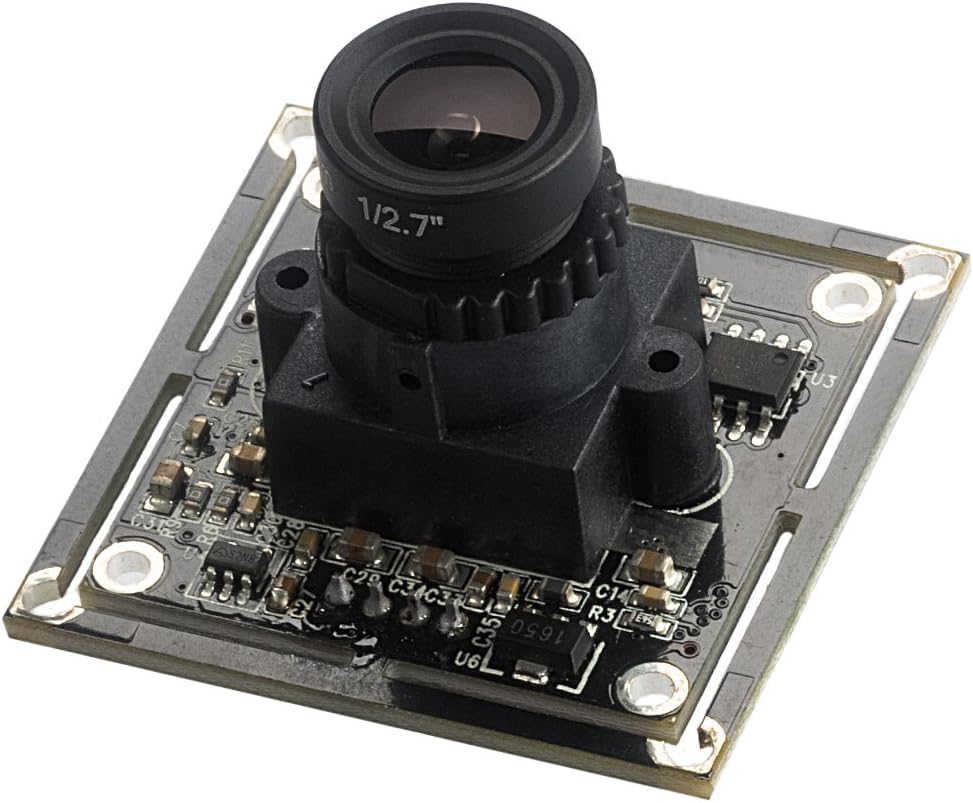

Spinel 2MP Full HD USB Camera Module OV2710 with 6mm Lens FOV 68 Degree, Support 1920x1080@30fps, UVC Compliant, Support Most OS, Focus Adjustable, UC20MPB_L60

Descripción

For more details check out www.spinelelectronics.com. For questions, technical support and custom orders, please email us at [email protected] or call 1-800-837-5859. Image Sensor: 1/2.7’’ CMOS OV2710 Pixel Size: 3μm x 3μm Resolution: 2 MP FULL HD 1920(H) X 1080(V) Shutter Type: Electronic rolling shutter Focus: Manually adjustable Focusing Range: 20mm to Infinity Protocol & Connection: Plug-&-Play (UVC compliant) Frame Rate: 320X240 QVGA MJPEG @120fps, 640X480 VGA MJPEG @120fps, 800X600 SVGA MJPEG @60fps, 1024X768 XGA MJPEG @30fps, 1280X720 HD MJPEG @60fps, 1280X1024 SXGA MJPEG @30fps, 1920X1080 FHD MJPEG @30fps 320X240 QVGA YUV2 @30fps, 640X480 VGA YUV2 @30fps, 800X600 SVGA YUV2 @20fps, 1024X768 XGA YUV2 @6fps, 1280X720 HD YUV2 @9fps, 1280X1024 SXGA YUV2 @6fps, 1920X1080 FHD YUV2 @6fps Minimum Illumination: 0.05Lux Lens: Default 6mm lens for 68 degree FOV with IR-Cut Filter (IR Filter) default at 650nm, custom options at 850nm or 940nm . For other Custom options contact us: 100 degree non-distortion lens, 2.1mm, 3.6mm, 8mm, 12mm, 16mm, FOV(D)170 Degree, FOV(D)180 Degree, FOV(H)185 Degree, 185 Degree Fisheye Night vision: No IR night vision, if needed, please contact us for a different IR lens and IR illumination options. Controllable Features: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure. Power Socket: 4P PH 2.0mm socket, USB BUS Power. Cable Length: Default 4ft (1.2M) (optional 2M or others upon request). Supported OS: Win XP/Vista/Win7/Win8/Win10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, Wince with UVC, Android 4.0 or higher with UVC. Power Consumption: DC5V (±5%), 150~200mA. Operating Temp.: -4°F~167°F (-20°C~+75°C). Storage Temp.: -40°F~185°F (-40°C~+125°C) Dimension: 38mmx 38mm (Mount compatible with 32 x 32mm) Weight: 12g (0.4OZ)
