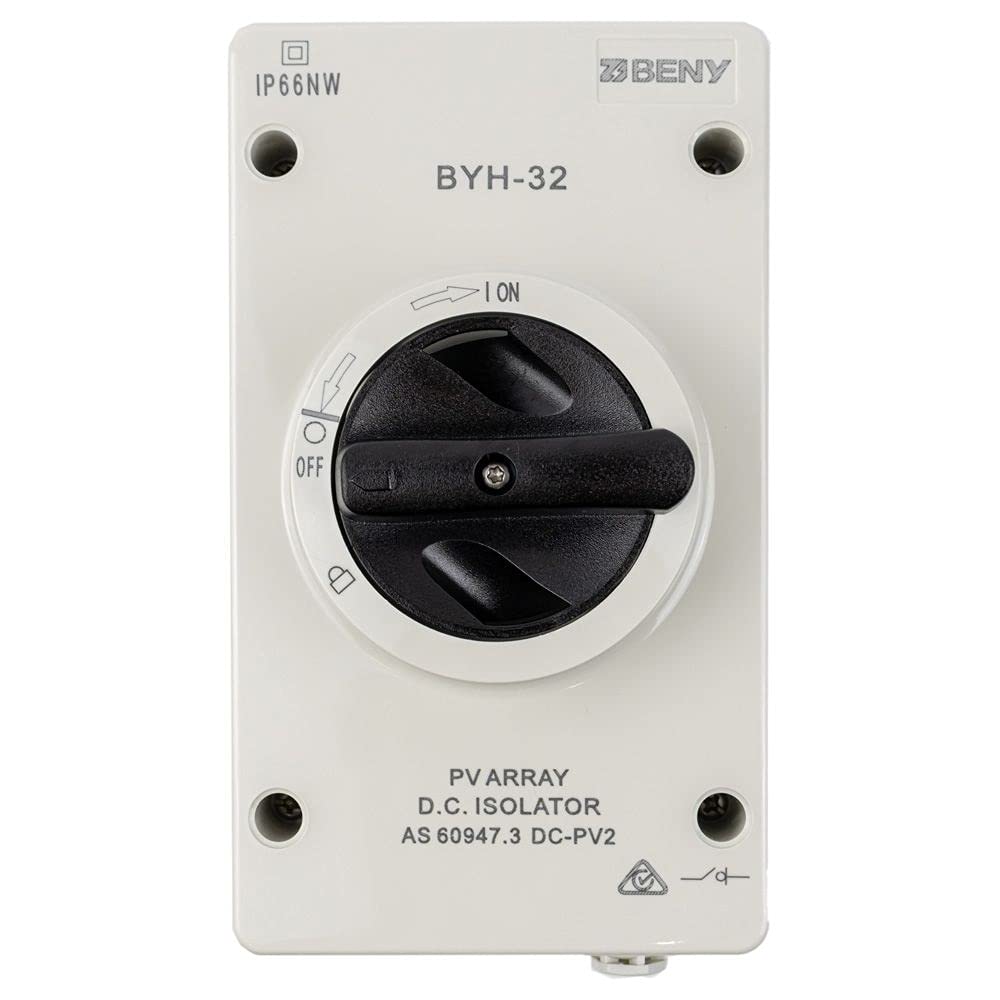

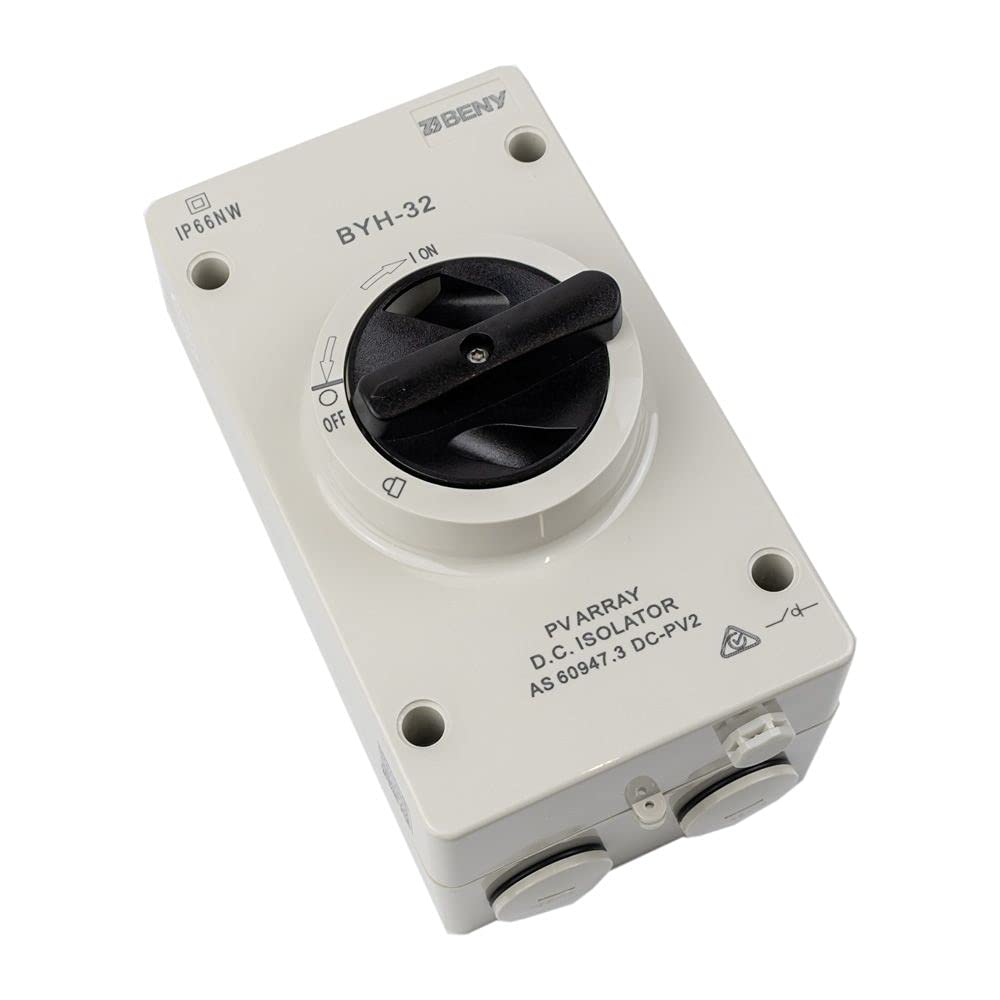

V-Switch Solar PV DC Isolator - Up to 1000V / 32A, IP66

The V-Switch BYH-32 DC Isolator is the ultimate choice for safety and reliability in solar installations. Compliant with IEC60947-3 and AS 60947.3:2018 standards, this DC isolator is designed for commercial and residential photovoltaic (PV) systems, offering secure DC power isolation up to 1000V and 32A. With an IP66 waterproof rating, UV resistance, and durable materials, it’s built to withstand challenging environments.

Product Highlights:

IP66 Waterproof Enclosure with UV Resistance – Provides excellent protection from water, dust, and sun exposure, ensuring long-lasting durability.
Fast Arc Suppression (<3ms) – Equipped with a patented arc-extinguish chamber for quick, safe suppression.
Complies with International Standards – Meets IEC60947-3 and AS60947.3:2018 standards, ideal for use in various global PV systems, including Australia and New Zealand.
Configurable 2-Pole and 4-Pole Options – Supports both single and double string configurations, adaptable for diverse installations.
Built for Safety and Longevity – Supports 300V to 1000V, rated for 32A, with a robust 5-year warranty and earth connection for added safety.

Key Specifications:

Model V-Switch BYH-32 Poles 2P / 4P Configurable Standards IEC60947-3, AS60947.3:2018 Voltage Range 300V - 1000V Current Rating 32A Protection Rating IP66 (Enclosure), IP20 (Switch Body) Certifications TUV, CB Certified Warranty 5 Years

Installation Recommendations:

Rated to withstand:
- 1.15x the string open-circuit voltage (Voc)
- 1.25x the string short-circuit current (Isc)

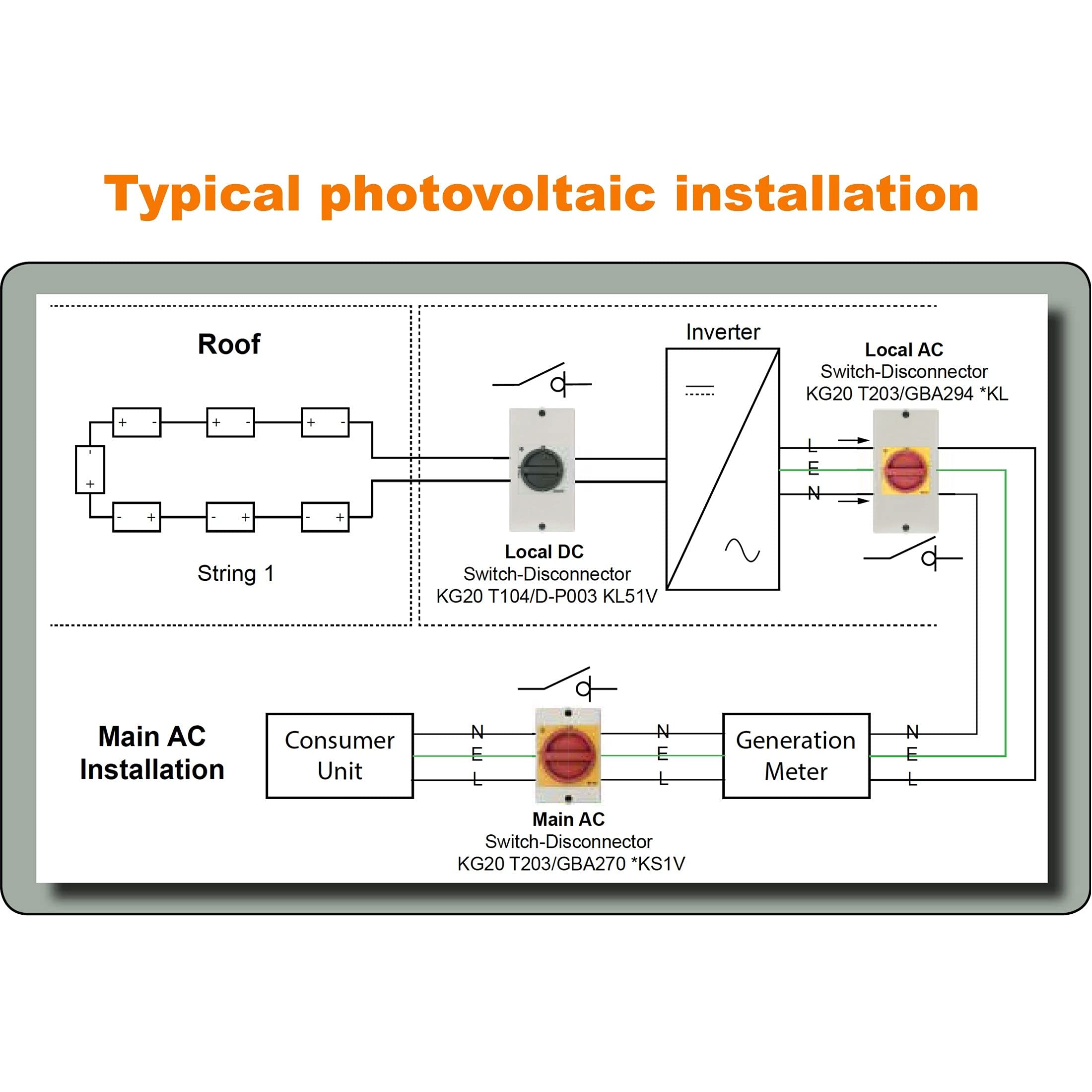

Recommended for installation between solar panels and inverter for optimal safety and isolation.

Why Choose V-Switch for Your PV System?

Solar professionals worldwide trust the V-Switch DC Isolator for its safety features, international compliance, and reliable performance. Whether for residential or commercial PV installations, the V-Switch provides peace of mind and robust isolation in your solar setup.

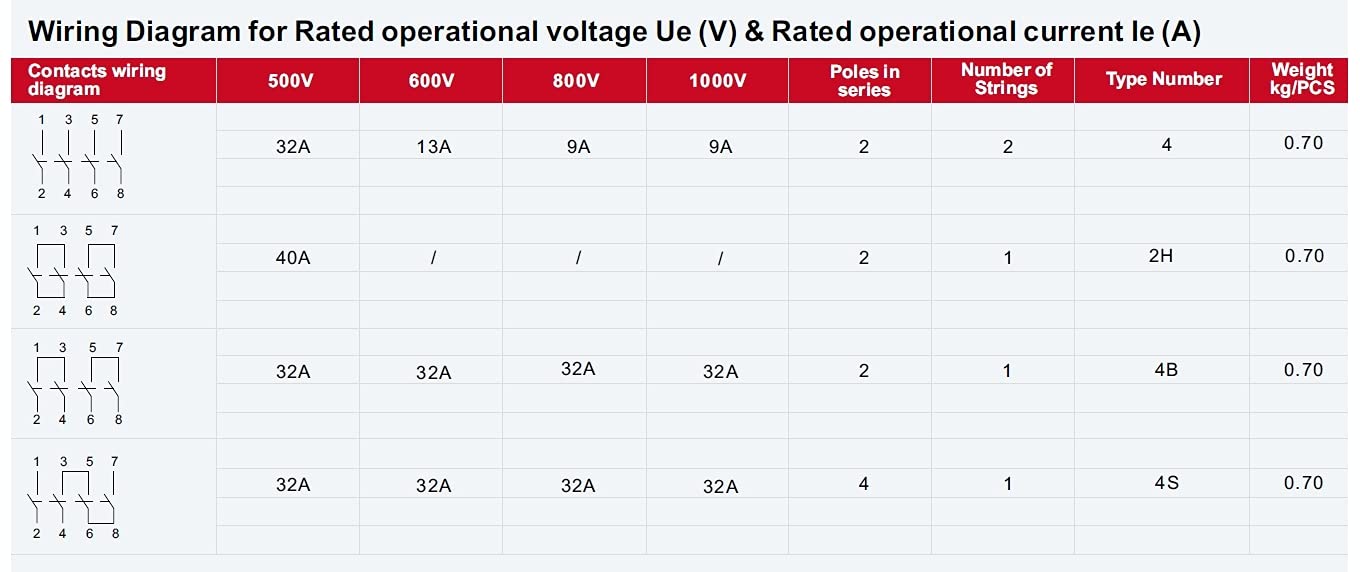

Wiring Diagram

For proper installation, refer to the wiring diagram below:

Manufacturer	ZBENY
Item Weight	500 g
Product Dimensions	10 x 7.5 x 10 cm; 500 g
Size	188 x 108.5 x 99mm
Voltage	240 Volts (DC)
Wattage	32000 watts
Amperage Capacity	32 Amps
Switch Type	1-way
Batteries included?	No
Batteries Required?	No

VOLTA-SWITCH DC ISOLATOR FOR SOLAR PV UP TO 1000V/32A
