Question 1

Mostly to seller: is there a published communication module data description so we can write our own code to read the usb module output? or, an sdk?

Accepted Answer

Note: amazon is showing this question on products that don't have Modbus.  PZEM-014/016 is the module you want for PC only interface, PZEM-022 for display only.

Question 2

For 240v install/Monitoring, instead of running a hot and neutral (black and white) to the display, can I run both black legs from 240v (120v + 120v)?

Accepted Answer

+1 what brycen says for United States 240V split phase service that uses 2 120V circuits. I clamped the coil over one of the hot legs and wired each hot leg to the load terminals on the meter. All measurements were accurate; amps, watts, volts, hertz, total power used, and power factor. I'm using this meter to monitor power supplied to a heating element for a brew kettle, which utilizes a Blichmann power controller to power the heating element. If you're using this for a similar purpose, wire the meter into the circuit BEFORE the power controller. Initially I wired it after the controller, which resulted in inaccurate readings..

Question 3

does this work without having neutral wire? in many (old) houses in Saudi Arabia we use 2 x 110V = 220V, both live

Accepted Answer

yes, I have one in the us on 240volts.  2 hot wires, one to the terminal marked hot and the other hot to the terminal marked neutral and it has been working for over a year so far.

Question 4

Can this meter be powered by 120v ac and used to read 220v ac for an air conditioning compressor?

Accepted Answer

As suggested, I bought two meters. Each is clamped over one leg of the power for the AC (120v+120v). I see current, volts and amps for each leg. Each meter is plugged into a standard 120v outlet. They are mounted in the garage on the wall opposite the breaker box (which is on the outside of the house.) Now I need a way to capture the information. I have an app that captures how often the AC blower fan comes on. I suppose if I get some averages of amperage used by the rest of the AC unit, under various outside temperatures, I can get a rough idea of how much power is being used.

ASIN	B07JB9B2QL
Best Sellers Rank	#21,517 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #40 in Multi Testers
Brand Name	MORNING GROUP
Bullet Point	1. Digital Multimeter:This power energy meter can measure and display voltage current active power energy frequency and power factor at the same time.with split current transformer,more convenient to install ., 2. Overload Alarm function:Backlight and power will flash simultaneously to give an alarm when exceeding the preset value.You can preset power limit by yourself., 3. Automatic Data Storage …
Color	Black
Customer Reviews	4.4 4.4 out of 5 stars (2,505)
Item Dimensions	3.42 x 0.95 x 1.85 inches
Item Package Quantity	1
Item Weight	0.16 Kilograms
List Price	19.99
Manufacturer	Wenzhou Morning Electronics Co., LTD
Measurement Type	Ammeter, Multimeter, Voltmeter
Minimum Operating Voltage	80
Model	PZEM-022
Package Weight	0.16 Kilograms
Part Number	ekspqcmdyw1126t
Power Source	Corded Electric
Size	AC 100A Meter(Split Core Transformer)
Style Name	1 Piece AC 100A Meter(Split Core Transformer)

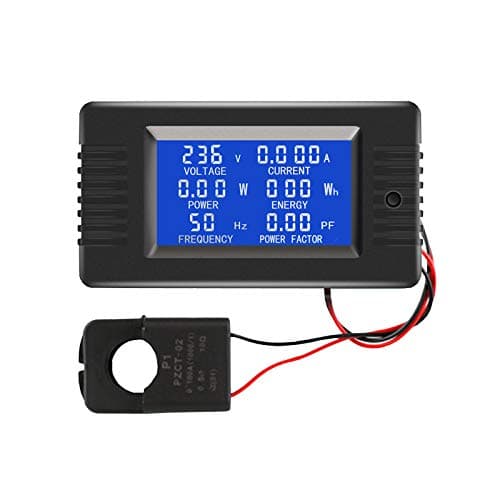

Title	AC Current Voltage Amperage Power Energy Panel Meter LCD Digital Display Ammeter Voltmeter Multimeter with Split Core Current Transformer CT AC 80-260V 100A Multi-Function Power Monitor
UPC	703931915688
Unit Count	1 Count

AC Current Voltage Amperage Power Energy Panel Meter LCD Digital Display Ammeter Voltmeter Multimeter with Split Core Current Transformer CT AC 80-260V 100A (AC 100A Meter(Split Core Transformer))
