Descripción
- Power Compatible: Every Grove connector has four wires, one of which is Vcc. However, not every micro-controller main board needs a supply voltage of 5V, some need 3.3V
- Power switch to Base Shield v2 you can adjust the voltage of Vcc via this switch, making sure the voltage of Vcc is the same as supply power of the main board.
- Board Compatible: The number of pinout is the same as that of Arduino UNO R3.
- Added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin,IOREF that allow the shields to adapt to the voltage provided from the board.
- In future, shields will be compatible with both the board that uses the AVR, which operates with 5V and with the Arduino

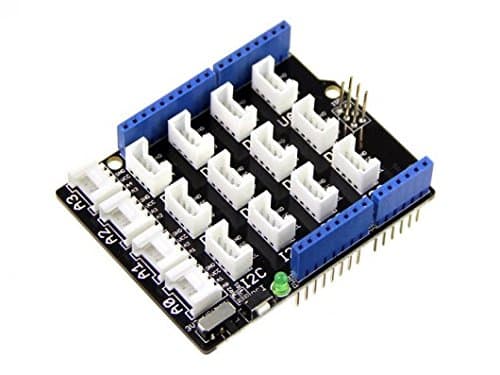

As an expansion board, Base Shield v2 has many Grove connectors, making it convenient for you to use Grove products together. And It is compatible with a series of Arduino products. Attention: If using Base Shield v2 with Seeeduino V3, please solder the pads, P1 and P2. For all Grove users (especially beginners), we provide you guidance PDF documents
