Question 1

Part number for just the knob?

Accepted Answer

The kit did not include separate part numbers. Just the bag of parts. Maybe a good hardware store can help you. Take the old one with you and match it up or drill a hole in an old one or a new one and using a thread cutting screw then install the screw to act as a pinching point on the existing stud. Just thoughts.

Question 2

Is it difficult to replace this gas control cock valve and thermocouple in the  fire pit?

Accepted Answer

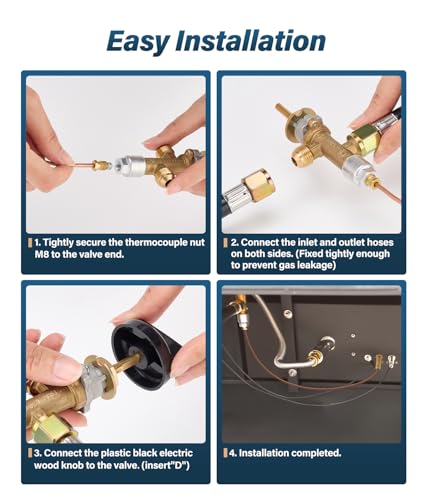

I followed the picture and installed it according to the operating instructions. It's very easy to install.

Question 3

Can I use this without the thermocouple? My propane fire pit does not use a thermocouple for its control valve.

Accepted Answer

No, I do not believe the unit will allow gas flow with the thermocouple uninstalled or unused (except when the control knob is held pushed in--the normal method to light a fire pit with a safety control.)  You could experiment and see if gas flows with the thermocouple detached, when the gas is turned on, but not pushed in. (Pushing the control IN forces gas to flow, ignoring the thermocouple input while the unit lights and heats up enough to stay lit as detected by the thermocouple.) Bypassing the thermocouple is dangerous. Holing the gas knob in during all use is impractical.

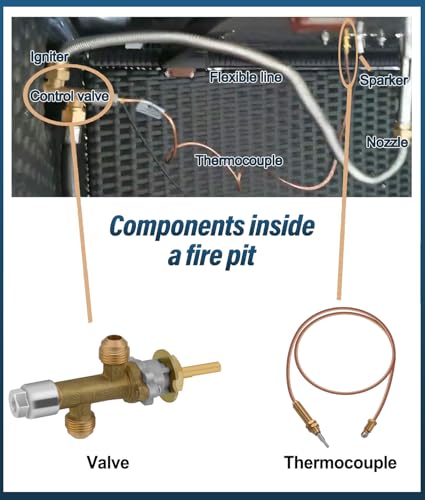

A better solution would be to drill a hole near the location of the sparker (igniter) and install the thermocouple there, allowing full, safe use of your firepit.  This installation is included in the illustrations on the Amazon product description (seen from below).

There is a real risk of continued release of gas if the unit does not stay lit and the gas continues to flow, possibly causing an explosion or fire or death by inhalation to nearby people or if used in an enclosed space. The purpose of the thermocouple is to prevent gas release unless it is burned inside the normal burner flame area. I suspect that this safety shut-off feature is required in most states and localities. It is also a very good idea.

Question 4

Can this valve be used to replace valve on santos outdoor 56-inch rectangular propane fire table with tank holder by christopher knight home?

Accepted Answer

The valve did not work for me, but all i really needed was the thermocoupler, which ended up helping me fix my table. be sure you check the 65mbar/3/8" male valve connections, as this was what didn't work for me.

ASIN	B07XYMX8NJ
Best Sellers Rank	#43,056 in Patio, Lawn & Garden ( See Top 100 in Patio, Lawn & Garden ) #51 in Fire Pit & Outdoor Fireplace Parts
Brand Name	WADEO
Connector Type	Flanged
Customer Reviews	4.4 4.4 out of 5 stars (1,042)
Exterior Finish	Brass
Included Components	Control Valve, Platic Black Knob, Thermocoupler

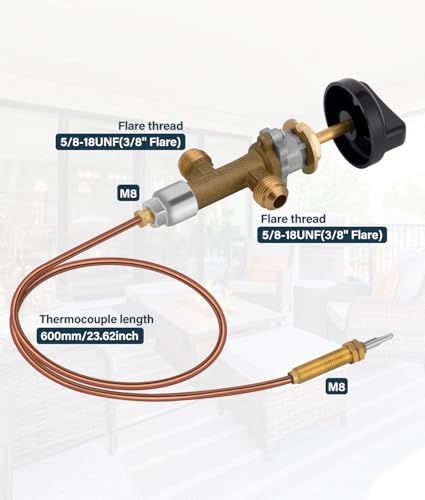

Inlet Connection Size	0.38 inches
Inlet Connection Type	Flare
Item Dimensions	3.9 x 1.1 x 4.5 inches
Item Weight	0.18 kg
Manufacturer	WADEO
Manufacturer Part Number	HK0229+HK0230+HK0231-IMUSA
Manufacturer Warranty Description	1 Year

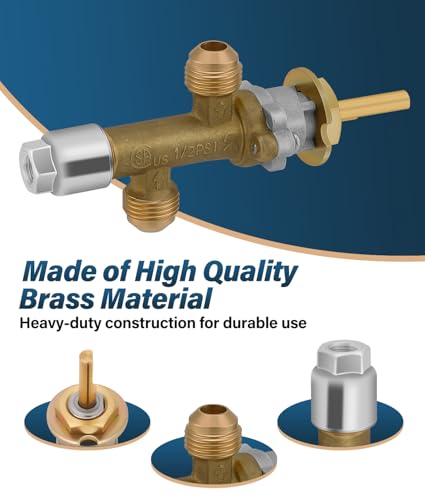

Material Type	Brass
Model Number	WADEO[...]
Number of Items	1
Number of Ports	2
Outlet Connection Size	0.38 inches
Outlet Connection Type	Flange
Set Name	Control Valve Kit
Size	1.1 x 3.9 x 4.5 inches
Thread Size	0.375 inches
Thread Type	NPT
UPC	778299080125
Unit Count	1 Count
Valve Type	Control Valve (with Solenoid Valve)

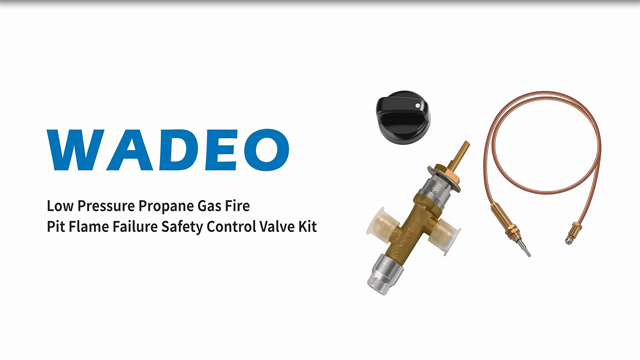

Propane Gas Fire Pit Fireplace Flame Failure Safety Control Valve Kit
